12. Drag and Reset Nrrd image#

  • setup html

    <template>
  <div id="bg" ref="base_container">
    <div ref="c_gui" id="gui"></div>
    <div ref="c_gui_2" id="gui_2"></div>
    <button class="btn" ref="btn" @click="reset">reset</button>
  </div>
</template>
<style lang="scss">
  #bg {
    width: 100vw;
    height: 100vh;
    /* border: 1px solid palevioletred; */
  }
  .btn {
    position: fixed;
    left: 500;
    top: 0;
    z-index: 1000;
  }
  button {
    cursor: pointer;
    margin: 10px;
  }
  #gui {
    position: absolute;
    top: 10px;
    left: 2px;
    z-index: 100;
  }
</style>

  • config copper3d

    import { GUI } from "dat.gui";
import * as Copper from "gltfloader-plugin-test";
import "gltfloader-plugin-test/dist/css/style.css";
import { getCurrentInstance, onMounted } from "vue";

let refs = null;
let bg: HTMLDivElement;
let appRenderer: Copper.copperMSceneRenderer;
let c_gui: HTMLDivElement;

onMounted(() => {
  let { $refs } = (getCurrentInstance() as any).proxy;
  refs = $refs;
  bg = refs.base_container;
  c_gui = refs.c_gui;

  appRenderer = new Copper.copperMSceneRenderer(bg, 2);

  loadNrrd(
    "/copper3d_examples/nrrd/breast-224.nrrd",
    "nrrd0",
    appRenderer.sceneInfos[0],
    c_gui
  );

  appRenderer.animate();
});

12.1. loadNrrd and enable drag with mode1#

  • load nrrd

    function loadNrrd(
  url: string,
  name: string,
  sceneIn: Copper.copperMScene,
  c_gui: any
) {
  const opts: Copper.optsType = {
    openGui: true,
    container: c_gui,
  };

  const funa = (
    volume: any,
    nrrdMesh: Copper.nrrdMeshesType,
    nrrdSlices: Copper.nrrdSliceType,
    gui?: GUI
  ) => {
    (gui as GUI).closed = true;
    appRenderer.sceneInfos[0].scene.add(nrrdMesh.x);
    appRenderer.sceneInfos[1].loadViewUrl(
      "/copper3d_examples/nrrd_view.json"
    );

    /**
     * set scenes camera viewPoint, for reset function
     */
    appRenderer.sceneInfos[0].setCameraPosition({ x: 300, z: 0 });

    /**
     * pick special mesh
     */
    sceneIn.container.onclick = (ev) => {
      const x = ev.offsetX;
      const y = ev.offsetY;
      const a = sceneIn.pickSpecifiedModel(nrrdMesh.x, { x, y });
      console.log(a);
    };

    appRenderer.sceneInfos[1].scene.add(nrrdMesh.z);
    /**
     * enable drag function, with optional parameter mode1, and show slice number div.
     */
    appRenderer.sceneInfos[1].dragImage(nrrdSlices.z, {
      mode: "mode1",
      showNumber: true,
    });
  };
  if (sceneIn) {
    sceneIn?.loadNrrd(url, funa, opts);
    sceneIn.loadViewUrl("/copper3d_examples/nrrd_view.json");
  }
  sceneIn.updateBackground("#18e5a7", "#000");
  Copper.setHDRFilePath("venice_sunset_1k.hdr");
  appRenderer.updateEnvironment(sceneIn);
}

12.2. enable reset nrrd#

  • it’s already related to btn

    function reset() {
  appRenderer.sceneInfos.forEach((sceneInfo) => {
    sceneInfo.resetView();
  });
}

12.3. add customise css for showNumberDiv#

  • it must without scoped

    <style lang="scss">
  .copper3d_sliceNumber {
    top: 50px !important;
    left: 150px !important;
    border: 1px solid salmon;
    border-radius: 10px;
    padding: 5px;
  }
</style>

12.4. how to use drag#

  • step1: select the scene that you want to control with your mouse.

  • step2: press any shift key on your keyborad.

  • step3: click your mouse on nrrd image and drag.

12.5. Result#

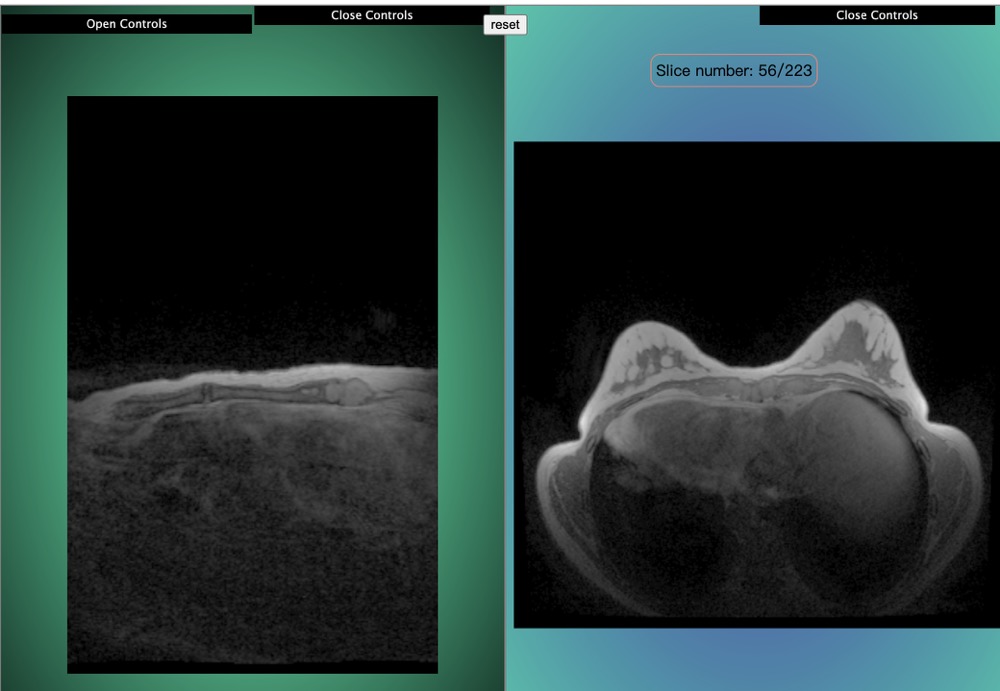

../_images/t_11.jpg

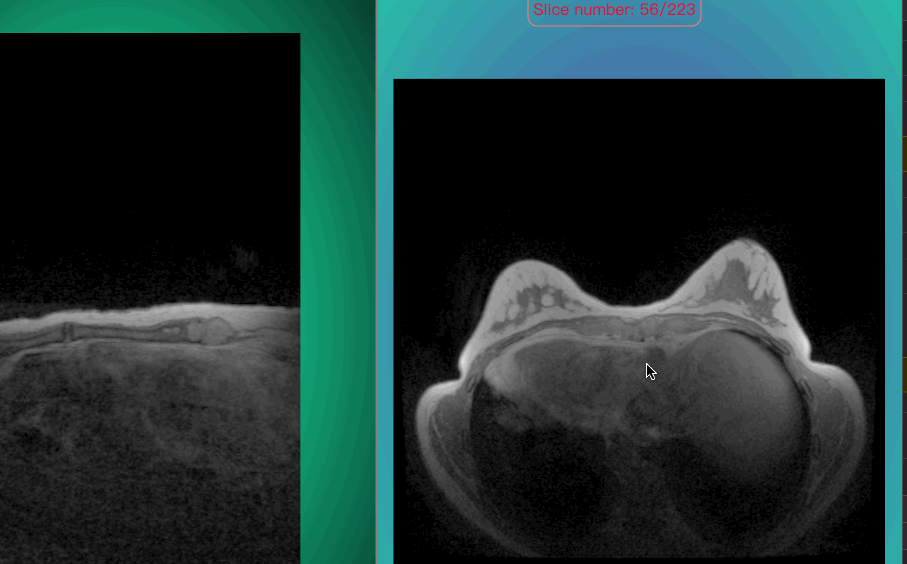

../_images/t_11_1.gif
